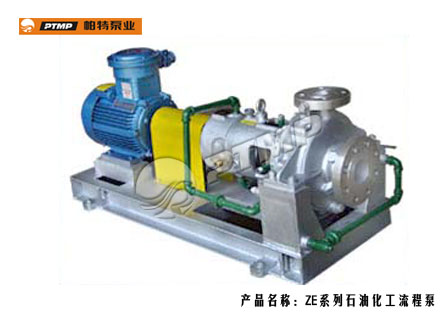

ZE series of petrochemical process pumps

•



product class:Chemical pump series

product name:ZE series of petrochemical pro....

Performance  data	Range of capacity	1.8~1450m³/h
	Range of head	≤133m
	Medium temperature	-10℃~120℃
	Ambient temperature	Up to 40℃
	Maximum working pressure	suction pressure+head of pump≤1.6MPa
Motor data	Supporting power
	Voltage	380V
	Frequency	50HZ
	Rotating speed	2900r/min,1450r/min,970r/min
	Protection class	IP44/IP54
	Insulation class	B/F
Material	pump body , pump cover,impeller	cast iron
	Pump shaft	45 steel /stainless stell 3Crl3
	Mechanical seal	silicon carbide,graphite,tungsten carbide,hard alloy and etc.
